Feetech Components
| Item | Name | Quantity | Cost (ea.) | Total |
|---|---|---|---|---|
 |

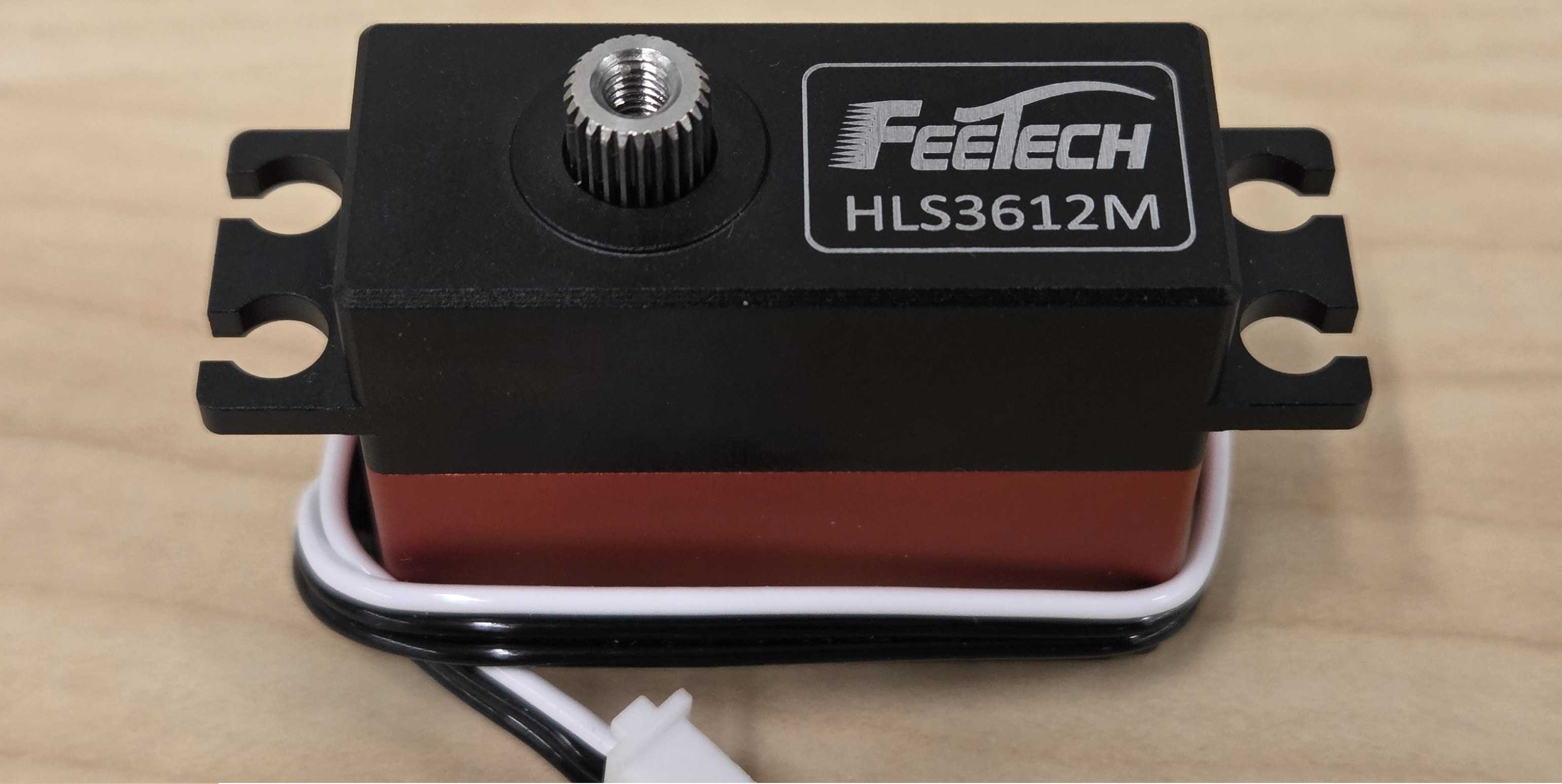

Feetech HLS3612M | 4 | $23.87 | $95.48 |
 |

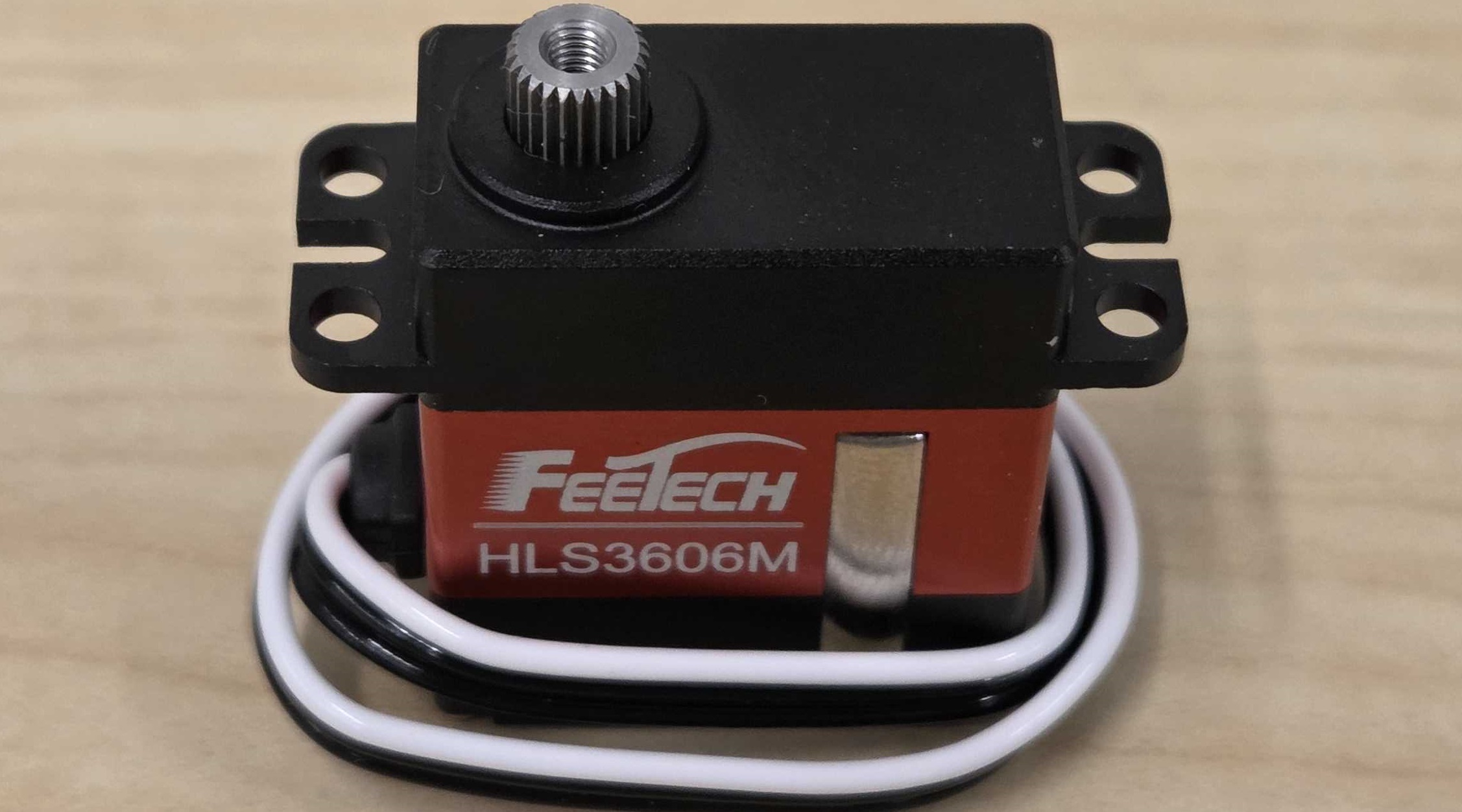

Feetech HLS3606M | 4 | $20.87 | $83.48 |
 |

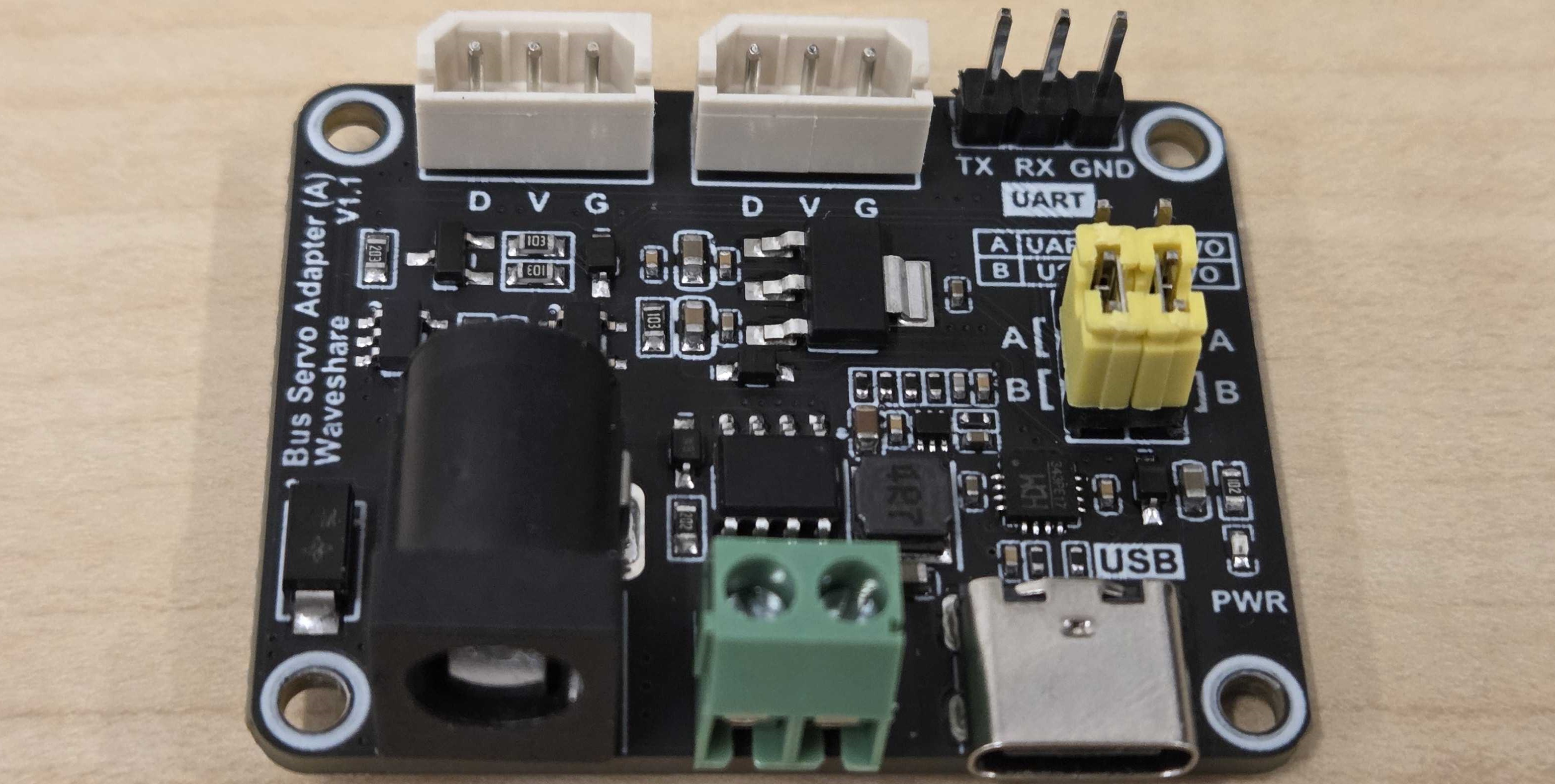

Waveshare USB Board | 1 | $9.99 | $9.99 |
 |

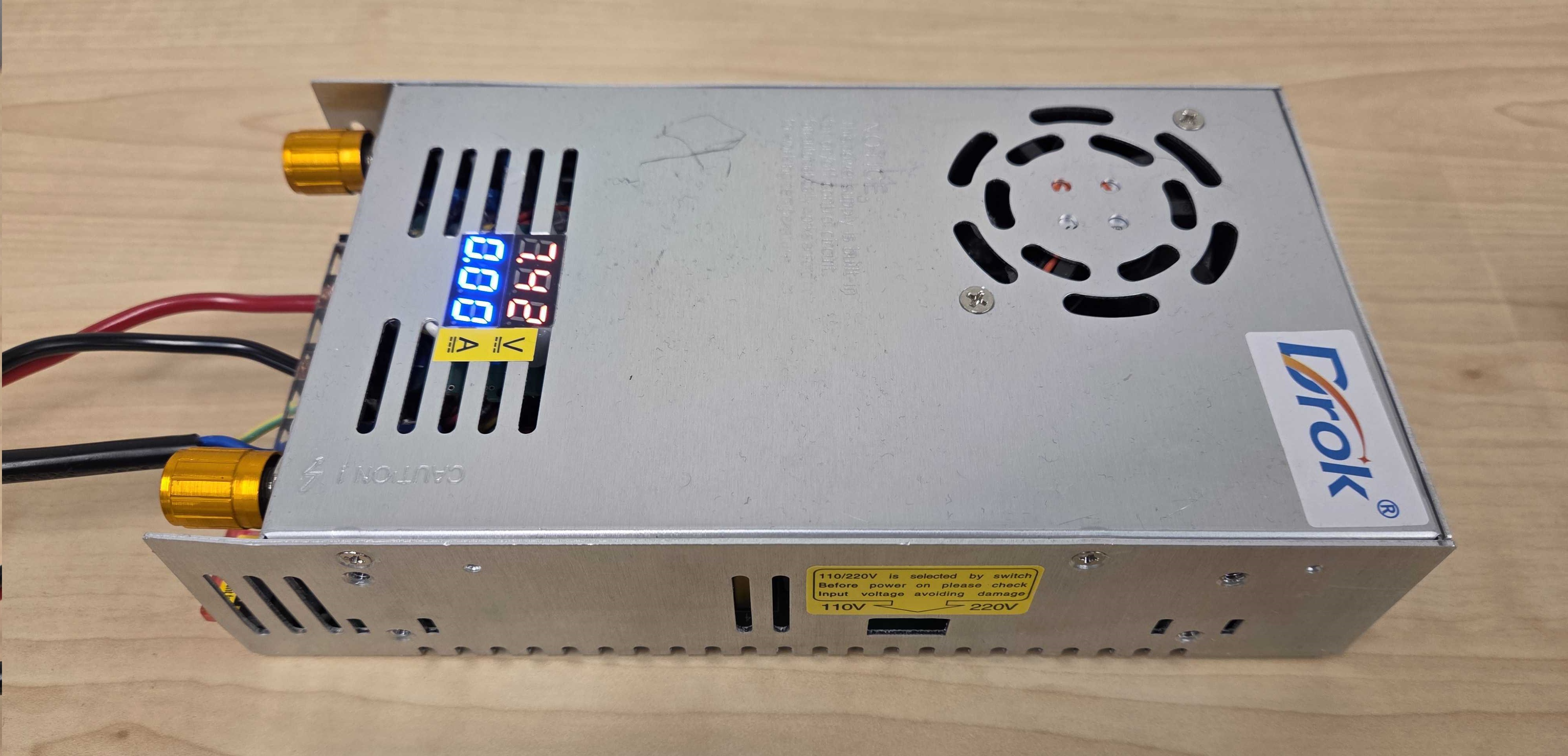

Power Supply (Single Display Fixed Current 12v 17a works) |
1 | $33.00 | $33.00 |
|

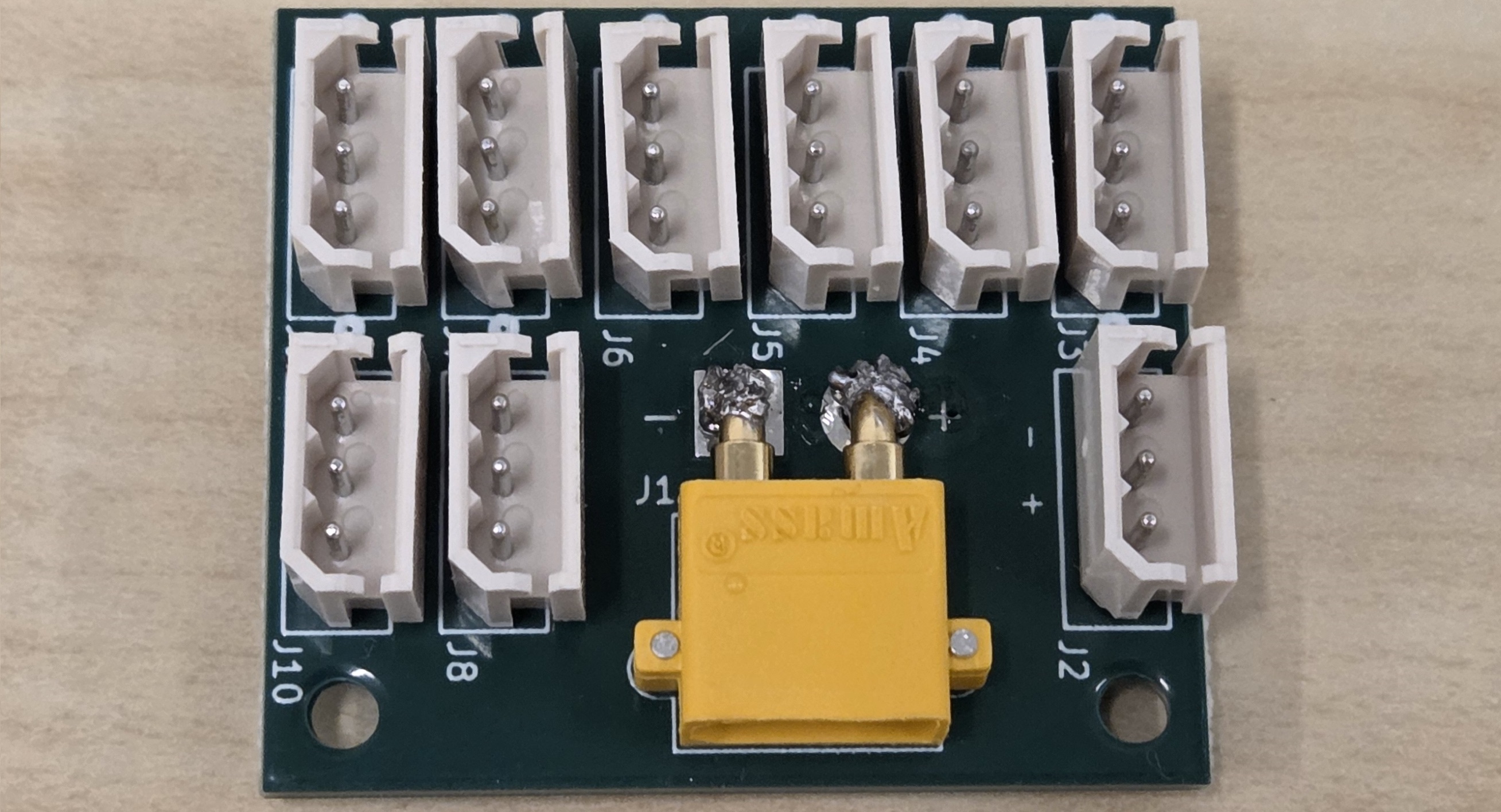

Using the LEAP Power Hub is optional. It makes wiring cleaner than the small Feetech splitters from the motors. See the LEAP Power Hub page for details. |
1 | $19.00 | $19.00 |
 |

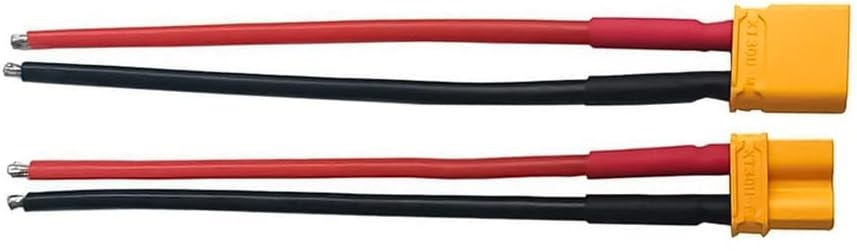

XT30
Pigtail | 1 | $9.00 | $9.00 |
Misc. Parts
Screw counts are approximate and may differ slightly with alternative mounting methods.
I suggest getting the variety packs, as they include some extras.
| Name | Quantity | Cost (ea.) | Total |
|---|---|---|---|
| Berkley Trilene Big Game Monofilament Fishing Line
100lb, Clear, Mono Leader, 0.99 mm Diameter |
1 | $12.99 | $12.99 |
| Polymaker PLA Pro 1 White Roll | 1 | $24.99 | $24.99 |
| Polymaker Polydissolve PVA | 1 | $59.99 | $59.99 |
| Recreus Filaflex Foamy Natural 1.75mm 600g | 1 | $54.90 | $54.90 |
| M2 Variety (16x M2x6, 8x M2x8) | 1 | $7.99 | $7.99 |
| M2.5 750pcs Variety M2.5 6mm, M2.5 8mm... | 1 | $7.98 (variety) | $7.98 |
| M4 20mm (12x M4 20mm) | 1 | $7.96 | $7.96 |
| M4 Nuts (12x M4 Nuts) | 1 | $5.99 | $5.99 |
| M2.5x6mm(length)x4mm(diameter) Brass Insert | 1 | $6.79 | $6.79 |
| M2.5x4mm(length)x3.5mm(diameter) Brass Insert | 1 | $8.99 | $8.99 |
| M2x6mm(length)x3.5mm(diameter) Brass Insert | 1 | $7.99 | $7.99 |
| M3 Buttonhead (4x M3 8mm) | 1 | $9.99 (variety) | $9.99 |
| M3 Variety (YAM/Piper Mount) | 1 | $6.99 (variety) | $6.99 |
| M6 Variety xArm/Franka/UR5 Mount | 1 | $9.99 (variety) | $9.99 |
| Power Cable AC (Change for your Country) |
1 | $7.00 | $7.00 |
| 14 AWG Cable | 1 | $9.99 | $9.99 |
Total Cost (1 Hand):
As of August 2025Feetech Parts: $221.95
Other Parts: $251.53
You can make many hands with the "Other Parts"If you prefer, I also have limited supply of 3D printed parts kits ($100) or fully assembled hands in stock (~$500)
Contact me at contact@leaphand.com
Tools Required
If you prefer not to print the parts yourself, you can purchase a set of fingers and palm—just send me an email.
Currently, I only provide print settings for the J1s. However, the Prusa XL with dual nozzles may also work.
The single-nozzle Bambus are not suitable, as the AMS cannot switch TPU. The dual-nozzle Bambu also struggles to print soft enough TPU.
Currently, I only provide print settings for the J1s. However, the Prusa XL with dual nozzles may also work.
The single-nozzle Bambus are not suitable, as the AMS cannot switch TPU. The dual-nozzle Bambu also struggles to print soft enough TPU.
| Name | Quantity | Cost (ea.) | Total |
|---|---|---|---|
| Snapmaker J1S |
1 | $899.99 | $899.99 |
| 0.2mm Printer Nozzle | 1 | $5.79 | $5.79 |
| 3D Printer Nozzle Wrench | 1 | $9.98 | $9.98 |
| Cleaning Filament (to clean out TPU nozzle) | 1 | $12.99 | $12.99 |
| Clog Poke tool | 1 | $12.99 | $12.99 |
| M2 and M3 Hex Wrenches | 1 | $9.99 (variety) | $9.99 |
| Motorized Screwdriver | 1 | $44.99 | $44.99 |
| Soldering Iron These tips are useful but not necessary. |
1 | $12.99 | $12.99 |
